AdventureWorks 2014 Sample Database Released! – for SQL Server 2014 (Hekaton)

August 5, 2014 1 comment

Sample DataBases AdventureWorks 2014 for SQL Server 2014 has been released and is ready for download, [link].

The sample includes various flavors of samples that you can use with SQL Server 2014, and are:
1. OLTP Database
2. DW Database
3. Tabular Model Database
4. MultiDimensional Model Database

So download these now and start practicing and working on 2014!!!

SQLServer2014_AdventureWorks2014_Sample_DBs


–> Check the same demo on YouTube:


Maintaining Uniqueness with Clustered ColumnStore Index | SQL Server 2014

July 24, 2014 5 comments

Column Store indexes were introduced in SQL Server 2012 with a flavor of Non-Clustered index i.e. “Non-Clustered ColumnStore” index. However there is a big limitation that the underlying table becomes read-only as soon as you create one.

In SQL Server 2014 this behavior is unchanged and addition to this you can also create ColumnStore index as a Clustered index. And the good thing is that the table having “Clustered ColumnStore” index can also be updated. However there is one more big limitation here that there is no Clustered Key with this type if index, thus risking the Uniqueness in the table.


–> Here we will see this limitation and a workaround which can be used in some scenarios:

USE tempdb
GO

-- Create a simple table with 3 columns having 1st column to contain Unique values:
CREATE TABLE dbo.TableWithCCI
(
	PKCol int NOT NULL,
	Foo int,
	Bar int
)
GO

-- Now create a "Clustered ColumnStore" index on this table:
CREATE CLUSTERED COLUMNSTORE INDEX CCI_TableWithCCI ON dbo.TableWithCCI
GO

Notice: While creating this index there is no provision to provided the “Clustering Key”, as this index includes all of the columns in the table, and stores the entire table by compressing the data and store by column.

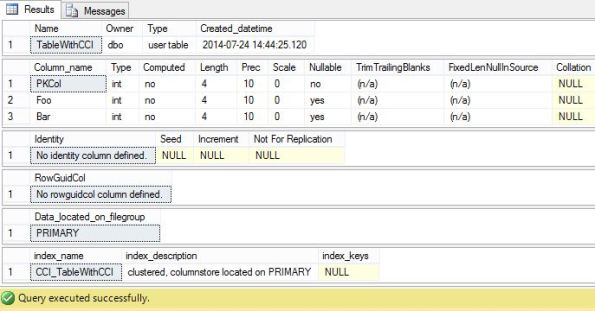

On checking the metadata (by ALT+F1) of the table, you will see NULL under the index_keys column:

SQLServer2014_Unique_CCI


– Now let’s check this feature of absence of Uniquenes. We will enter 2 records with same value:

insert into dbo.TableWithCCI
select 1,2,3

insert into dbo.TableWithCCI
select 1,22,33
GO

SELECT * FROM dbo.TableWithCCI
GO

You will see 2 records with same duplicate value.


– Now, let’s create another Unique index to enforce this constraint:

CREATE UNIQUE INDEX UX_TableWithCCI ON dbo.TableWithCCI(PKCol)
GO

We get an error that you cannot create more indexes if you have a Clustered ColumnStore index:

Msg 35303, Level 16, State 1, Line 25
CREATE INDEX statement failed because a nonclustered index cannot be created on a table that has a clustered columnstore index. Consider replacing the clustered columnstore index with a nonclustered columnstore index.



–> Workaround: As a workaround we can create an Indexed/Materialized View on top this table, with Clustering Key as the PK (1st column of the table/view):

CREATE VIEW dbo.vwTableWithCCI
	WITH SCHEMABINDING
AS
	SELECT PKCol, Foo, Bar
	FROM dbo.TableWithCCI
GO

-- Delete duplicate records entered previously:
DELETE FROM dbo.TableWithCCI
GO

-- Create a Unique Clustered Index on top of the View to Materialize it:
CREATE UNIQUE CLUSTERED INDEX IDX_vwTableWithCCI ON dbo.vwTableWithCCI(PKCol)
GO

– Now let’s try to enter duplicate records again and see if these can be entered or not:

insert into dbo.TableWithCCI
select 1,2,3

insert into dbo.TableWithCCI
select 1,22,33
GO

– As expected we get an error after we inserted 1st records and tried to insert the 2nd duplicate record:

(1 row(s) affected)
Msg 2601, Level 14, State 1, Line 48
Cannot insert duplicate key row in object ‘dbo.vwTableWithCCI’ with unique index ‘IDX_vwTableWithCCI’. The duplicate key value is (1).
The statement has been terminated.

–> Not sure why Microsoft has put this limitation of not maintaining the Uniqueness with these indexes. While using this workaround you need to consider this approach if possible. Like in some scenarios where the table is very big and there are frequent updates (INSERT/UPDATE/DELETES) this approach of maintaining another Indexed-View would be expensive. So this approach should be evaluated before implementing.


-- Final Cleanup:
DROP VIEW dbo.vwTableWithCCI
GO
DROP TABLE dbo.TableWithCCI
GO



I look forward in new versions of SQL Server to address this limitation.
You can also refer to MSDN BOL [here] for checking all limitations with ColumnStore Indexes.


[Update as of May-2015] with SQL Server 2016 you can make unique Clustered ColumnStore Index indirectly by creating Primary/Unique Key Constraint on a heap with a Non-Clustered Index, [check here].


Update: Know on ColumnStore Indexes as of SQL Server 2016:




Check & Like my FB Page


Book Review – Getting Started with SQL Server 2014 Administration

July 3, 2014 Leave a comment

I started working on SQL Server with version 2000 (back in yr2005), then upgraded to 2005 (in yr2008), skipped 2008 version, jumped to 2008 R2 (in yr2011), then 2012 (in yr2012) and now finally 2014 very recently.

Now “SQL Server 2014” looks very competitive if you compare it with other vendors in terms of DB Engine, BI Suite, Administration, Cloud Computing, and the latest In-Memory processing, all bundled in a single suit.


–> SQL Server 2014 is packed with new and robust features like:
1. In-Memory OLTP
2. Updatable ColumnStore Indexes for Data Warehouse
3. Enhanced AlwaysOn, Azure VMs for Availability replicas
4. Managed Backup to Azure
5. SQL Server Data Files in Azure
6. Encrypted Backups
7. Delayed durability
8. Buffer Pool Extension (with SSD)
9. Incremental Stats


“Getting Started with SQL Server 2014 Administration” book is authorized by Gethyn Ellis {B|L|T} and covers most of these features in Detail and in simple steps. I’ve also talked about some of these features on my previous blog post [link], and will be writing in future also.

Getting started with SQL server 2014 Adm_Front cover_2413EN


–> The book contains following chapters:

Chapter 1: SQL Server 2014 and Cloud
Chapter 2: Backup and Restore Improvements
Chapter 3: In-Memory Optimized Tables
Chapter 4: Delayed Durability
Chapter 5: AlwaysOn Availability Groups
Chapter 6: Performance Improvements

The book starts (Chapter-1) by giving an introduction to the Cloud and how Microsoft Azure SQL Database enables your SQL Server database on Cloud in easy & graphical steps, which includes:
1.1. Creating Azure SQL DB
1.2. Integrating Azure Stirage
1.3. Creating Azure VMs

On Chapter-2 its talks about Backup & Restore improvements in 2014, which includes:
2.1. Database backups/restore to a URL and Azure Storage
2.2. SQL Server Managed Backup to Microsoft Azure
2.3. Encrypted Backups

Chapter-3 tells you about new In-Memory functionality by creating:
3.1. In-Memory Tables & Indexes
3.2. Native compiled Stored Procedures

Chapter-4 discuss about Delayed Durability and how it can help improve performance by using in-memory transaction log feature, which delays writing transaction log entries to disk.

Chapter-5 talks about enhancements to AlwaysOn Availability Groups and following:
5.1. Using Microsoft Azure Virtual Machines as replicas
5.2. Building AlwaysOn Availability Groups
5.3. Creating/Troubleshooting Availability Group

Last Chapter-6 talks about lot of improvements in Performance, which includes:
6.1. Partition switching and indexing, now it is possible for individual partitions of partitioned tables to be rebuilt.
6.2. Updatable and new Clustered ColumnStore Indexes.
6.3. Buffer pool extensions, will allow you to make use of SSD (Solid-State Drives) as extra RAM on your DB server, thus by providing an extension to the Database Engine buffer pool, which can significantly improve the I/O throughput.
6.4. New Cardinality estimator and better query plans.
6.5. Update Statistics incrementally instead of a full Scan.


PROS: The book covers most of the new features in SQL Server 2014, so it is good for DBAs and Developers who already have prior experience in SQL Server 2012 Admin and Dev. Overall a good book which gives good insights into SQL Server 2014, Azure and new features.

CONS: Not on negative side, but for newbies and junior DBAs I would suggest to get hold of some basic DBA book and stuff first then graduate to this book.


Download/Buy book Here [Packt Publishing].


Memory Optimized Indexes | Hash vs Range Indexes – SQL Server 2014

December 20, 2013 3 comments

In SQL Server 2014 for In-Memory tables there are lot of changes in DDLs compared with normal Disk Based Tables. In-Memory Tables related changes we’ve seen in previous posts, check [here]. Here we will see Memory Optimized Index related changes and few important things to take care before designing your Tables and Indexes.


–> Some of the main points to note are:

1. Indexes on In-Memory tables must be created inline with CREATE TABLE DDL script only.

2. These Indexes are not persisted on Disk and reside only in memory, thus they are not logged. As these Indexes are not persistent so they are re-created whenever SQL Server is restarted. Thus In-Memory tables DO NOT support Clustered Indexes.

3. Only two types of Indexes can be created on In-Memory tables, i.e. Non Clustered Hash Index and Non Clustered Index (aka Range Index). So there is no bookmark lookup.

4. These Non Clustered Indexes are inherently Covering, and all columns are automatically INCLUDED in the Index.

5. Total there can be MAX 8 Non Clustered Indexes created on an In-Memory table.


–> Here we will see how Query Optimizer uses Hash & Range Indexes to process query and return results:

1. Hash Indexes: are used for Point Lookups or Seeks. Are optimized for index seeks on equality predicates and also support full index scans. Thus these will only perform better when the predicate clause contains only equality predicate (=).

2. Range Indexes: are used for Range Scans and Ordered Scans. Are optimized for index scans on inequality predicates, such as greater than or less than, as well as sort order. Thus these will only preform better when the predicate clause contains only inequality predicates (>, <, =, BETWEEN).


–> Let’s check this by some hands-on code. We will create 2 similar In-Memory tables, one with Range Index and another with Hash Index:

-- Create In-Memory Table with simple NonClustered Index (a.k.a Range Index):
CREATE TABLE dbo.MemOptTable_With_NC_Range_Index
(
    ID INT NOT NULL
        PRIMARY KEY NONCLUSTERED,
    VarString VARCHAR(200) NOT NULL,
    DateAdded DATETIME NOT NULL
) WITH (
	MEMORY_OPTIMIZED = ON,
	DURABILITY = SCHEMA_AND_DATA
)
GO

-- Create In-Memory Table with NonClustered Hash Index:
CREATE TABLE dbo.MemOptTable_With_NC_Hash_Index
(
    ID INT NOT NULL
        PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 10000),
    VarString VARCHAR(200) NOT NULL,
    DateAdded DATETIME NOT NULL
) WITH (
	MEMORY_OPTIMIZED = ON,
	DURABILITY = SCHEMA_AND_DATA
)
GO



–> Now we will Insert about 10k records on both the tables, so that we have good numbers of records to compare:

DECLARE @i INT = 1

WHILE @i <= 10000
BEGIN
	INSERT INTO dbo.MemOptTable_With_NC_Range_Index
		VALUES(@i, REPLICATE('a', 200), GETDATE())

	INSERT INTO dbo.MemOptTable_With_NC_Hash_Index
		VALUES(@i, REPLICATE('a', 200), GETDATE())

	SET @i = @i+1
END



–> Now check the Execution Plan by using equality Operator (=) on both the tables:

SELECT * FROM MemOptTable_With_NC_Hash_Index  WHERE ID = 5000 -- 4%
SELECT * FROM MemOptTable_With_NC_Range_Index WHERE ID = 5000 -- 96%

You will see in the Execution Plan image below that Equality Operator with Hash Index Costs you only 4%, but Range Index Costs you 96%.

SQLServer2014_Hash_vs_Range_1


–> Now check the Execution Plan by using inequality Operator (BETWEEN) on both the tables:

SELECT * FROM MemOptTable_With_NC_Hash_Index  WHERE ID BETWEEN 5000 AND 6000 -- 99%
SELECT * FROM MemOptTable_With_NC_Range_Index WHERE ID BETWEEN 5000 AND 6000 -- 1%

You will see in the Execution Plan image below that Inequality Operator with Range Index Costs you only 1%, but Hash Index Costs you 99%.

SQLServer2014_Hash_vs_Range_2


So, while designing In-Memory Tables and Memory Optimized Indexes you will need to see in future that how you will be going to query that table. It also depends upon various scenarios and conditions, so always keep note of these things in advance while designing your In-Memory Tables.


Update: Know more about In-Memory tables:





XTP (eXtreme Transaction Processing) with Hekaton Tables & Native Compiled Stored Procedures – SQL Server 2014

December 19, 2013 1 comment

In my previous posts [this & this] I talked about creating Memory Optimized Database, how to create In-Memory Tables & Native Compiled Stored Procedures and what happens when they are created.

Here in this post we will see how FAST actually In-Memory tables & Native Compiled Stored Procedures are, when compared with normal Disk based Tables & Simple Stored Procedures.

I’ll be using the same [ManTest] database used in my previous posts, you can refer to the DDL script [here].


–> We will create:

1. One Disk based Table & one simple Stored Procedure which will use this Disk based Table.

2. One In-Memory Table & one Native Compiled Stored Procedure which will use this In-Memory Table.


1. Let’s first create a Disk based Table and a normal Stored Procedure:

USE [ManTest]
GO

-- Create a Disk table (non-Memory Optimized):
CREATE TABLE dbo.DiskTable
(
    ID INT NOT NULL
        PRIMARY KEY,
    VarString VARCHAR(200) NOT NULL,
    DateAdded DATETIME NOT NULL
)
GO

-- Create normal Stored Procedure to load data into above Table:
CREATE PROCEDURE dbo.spLoadDiskTable @maxRows INT, @VarString VARCHAR(200)
AS
BEGIN
	SET NOCOUNT ON

	DECLARE @i INT = 1

	WHILE @i <= @maxRows
	BEGIN
		INSERT INTO dbo.DiskTable VALUES(@i, @VarString, GETDATE())
		SET @i = @i+1
	END
END
GO



2. Now create an In-Memory table & a Native Compiled Stored Procedure to load data:

-- Create an In-Memory table:
CREATE TABLE dbo.MemOptTable
(
    ID INT NOT NULL
        PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 10000),
    VarString VARCHAR(200) NOT NULL,
    DateAdded DATETIME NOT NULL
) WITH (
	MEMORY_OPTIMIZED = ON,
	DURABILITY = SCHEMA_AND_DATA
)
GO

-- Create Native Compiled Stored Procedure to load data into above Table:
CREATE PROCEDURE dbo.spLoadMemOptTable @maxRows INT, @VarString VARCHAR(200)
WITH
	NATIVE_COMPILATION,
	SCHEMABINDING,
	EXECUTE AS OWNER
AS
BEGIN ATOMIC
WITH (TRANSACTION ISOLATION LEVEL=SNAPSHOT, LANGUAGE='us_english')

	DECLARE @i INT = 1

	WHILE @i <= @maxRows
	BEGIN
		INSERT INTO dbo.MemOptTable VALUES(@i, @VarString, GETDATE())
		SET @i = @i+1
	END
END
GO



–> Now we will try to Load 10k record in above 2 table in various ways, as follows:

1. Load Disk based Table by T-SQL script using a WHILE loop.

2. Load the same Disk based Table by Stored Procedure which internally uses a WHILE loop.

3. Load In-Memory Table by T-SQL script using a WHILE loop.

4. Load the same In-Memory Table by Native Compiled Stored Procedure which internally uses a WHILE loop.


–> Working with Disk based Tables:

SET NOCOUNT ON

DECLARE
	@StartTime DATETIME2,
	@TotalTime INT

DECLARE
	@i INT,
	@maxRows INT,
	@VarString VARCHAR(200)

SET @maxRows = 10000
SET @VarString = REPLICATE('a',200)

SET @StartTime = SYSDATETIME()
SET @i = 1

-- 1. Load Disk Table (without SP):
WHILE @i <= @maxRows
BEGIN
	INSERT INTO dbo.DiskTable VALUES(@i, @VarString, GETDATE())
	SET @i = @i+1
END

SET @TotalTime = DATEDIFF(ms,@StartTime,SYSDATETIME())

SELECT 'Disk Table Load: ' + CAST(@TotalTime AS VARCHAR) + ' ms (without SP)'

-- 2. Load Disk Table (with simple SP):
DELETE FROM dbo.DiskTable

SET @StartTime = SYSDATETIME()

EXEC spLoadDiskTable @maxRows, @VarString

SET @TotalTime = DATEDIFF(ms,@StartTime,SYSDATETIME())

SELECT 'Disk Table Load: ' + CAST(@TotalTime AS VARCHAR) + ' ms (with simple SP)'



–> Working with In-Memory Tables:

-- 3. Load Memory Optimized Table (without SP):
SET @StartTime = SYSDATETIME()
SET @i = 1

WHILE @i <= @maxRows
BEGIN
	INSERT INTO dbo.MemOptTable VALUES(@i, @VarString, GETDATE())
	SET @i = @i+1
END

SET @TotalTime = DATEDIFF(ms,@StartTime,SYSDATETIME())

SELECT 'Memory Table Load: ' + CAST(@TotalTime AS VARCHAR) + ' ms (without SP)'

-- 4. Load Memory Optimized Table (with Native Compiled SP):
DELETE FROM dbo.MemOptTable

SET @StartTime = SYSDATETIME()

EXEC spLoadMemOptTable @maxRows, @VarString

SET @TotalTime = DATEDIFF(ms,@StartTime,SYSDATETIME())

SELECT 'Disk Table Load: ' + CAST(@TotalTime AS VARCHAR) + ' ms (with Native Compiled SP)'
GO

–> Output (Loaded 10k records):

Disk based Table Load	 : 28382 ms (without SP)
Disk based Table SP Load : 8297 ms  (with simple SP)
In-Memory Table Load     : 5176 ms  (without SP)
In-Memory Table SP Load  : 174 ms   (with Native Compiled SP)



So, you can clearly see the benefit and multifold increase in performance by using In-Memory Tables & Native Compiled Stored Procedures. The graph below shows performance in visual bar charts, impressive, isn’t it?

SQLServer2014Comparison


–> Final Cleanup

DROP PROCEDURE dbo.spLoadDiskTable
DROP TABLE dbo.DiskTable
DROP PROCEDURE dbo.spLoadMemOptTable
DROP TABLE dbo.MemOptTable
GO



Update: Know more about In-Memory tables:
