Archive for the ‘JSON’ Category

Store JSON data in a table, OPENJSON and JSON_Value functions | SQL Server 2016 – Part 4

November 2, 2015 2 comments

In my previous posts I talked about how to [export] a Table or Query data into JSON string format, and [read it back] from JSON string to Relational-table format, and with [nested elements].


Here, in this post I’ll show how we can store JSON data in a normal table column, just like you store XML data.

XML data is stored in a column of XML datatype which also check the validity of the XML data to be stored. But to store JSON data there is no new datatype introduced, JSON can be stored in an NVARCHAR datatype column just like a plain text, and to validate it you can add a CHECK constraint on it.

IsJSON() function: can be used as a CHECK constraint on the columns that contain JSON string which will validate if the JSON string is in proper format or not.


As we will need AdvantureWorks2014 Sample Database in our example below, we need to upgrade its Compatibility from SQL 2014 to SQL 2016, i.e. from level 120 to 130, like:

USE [master]
GO

ALTER DATABASE [AdventureWorks2014] SET COMPATIBILITY_LEVEL = 130
GO

You can download AdvantureWorks2014 sample Database from Microsoft [CodePlex site].


–> Ok, now let’s create a new Table with OrderDetailsJSON column for storing JSON string with a CHECK constraint on it:

USE [AdventureWorks2014]
GO

CREATE TABLE CustomerOrder (
	BusinessEntityID INT,
	FirstName NVARCHAR(50),
	MiddleName NVARCHAR(50),
	LastName NVARCHAR(50),
	EmailPromotion INT,

	OrderDetailsJSON NVARCHAR(MAX) -- normal column with NVARCHAR datatype
		CHECK ( IsJSON ( OrderDetailsJSON ) = 1 ) -- CHECK Constraint to validate JSON string
)



–> Let’s create a sample record-set with JSON data in OrderDetailsJSON column. We will use FOR JSON AUTO option to convert relational data to JSON string for our example, as shown below:

;WITH CTE_PersonContact AS (
	SELECT
		BusinessEntityID, FirstName, MiddleName, LastName, EmailPromotion,
		OrderDetailsJSON =
		(	SELECT SalesOrderID, OrderDate, SubTotal, TaxAmt, TotalDue
			FROM [AdventureWorks2014].[Sales].[SalesOrderHeader] S
			WHERE S.CustomerID = P.BusinessEntityID
			FOR JSON AUTO -- here
		) -- our JSON column
	FROM [Person].[Person] P
)
INSERT INTO CustomerOrder
SELECT
	BusinessEntityID, FirstName, MiddleName, LastName, EmailPromotion,
	OrderDetailsJSON
FROM CTE_PersonContact
WHERE OrderDetailsJSON IS NOT NULL

-- (9778 row(s) affected)

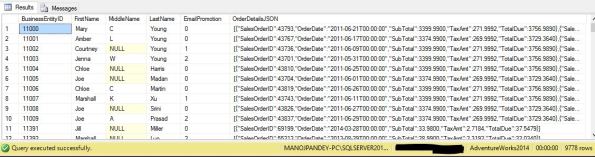

–> Check the above inserted records with the OrderDetailsJSON column containing data in JSON format:

SELECT * FROM CustomerOrder

-- (9778 row(s) affected)

SQL Server 2016 - JSON table


–> Let’s Query back the JSON data from the OrderDetailsJSON column with other columns in relational form, by using OPENJSON() function. As for each Customer it can contain multiple orders we will get multiple rows for each Customer and multiple columns as per defined in the JSON string:

SELECT
	C.BusinessEntityID, C.FirstName, C.MiddleName, C.LastName, C.EmailPromotion,
	J.SalesOrderID, J.OrderDate, J.SubTotal, J.TaxAmt, J.TotalDue
FROM CustomerOrder C
CROSS APPLY OPENJSON (OrderDetailsJSON)
WITH (
	SalesOrderID INT,
	OrderDate DATETIME,
	SubTotal MONEY,
	TaxAmt MONEY,
	TotalDue MONEY
) AS J

-- (17463 row(s) affected)

SQL Server 2016 - JSON table 2


–> And if you want to get just one Order per Customer then you can use following Query, by using JSON_Value() function and by specifying the array key pointer/position to get the first value fro the array:

SELECT
	C.BusinessEntityID, C.FirstName, C.MiddleName, C.LastName, C.EmailPromotion,
	SalesOrderID		= JSON_Value (OrderDetailsJSON, '$[0].SalesOrderID'),
	OrderDate			= JSON_Value (OrderDetailsJSON, '$[0].OrderDate'),
	SubTotal			= JSON_Value (OrderDetailsJSON, '$[0].SubTotal'),
	TaxAmt				= JSON_Value (OrderDetailsJSON, '$[0].TaxAmt'),
	TotalDue			= JSON_Value (OrderDetailsJSON, '$[0].TotalDue')
FROM CustomerOrder C

-- (9778 row(s) affected)



We can also use JSON string for passing multiple values from a single parameter in an Stored Procedure to implement dynamic parameters functionality as a workaround, check the [blog post] for the same.


Advertisements

Reading JSON string with Nested array of elements | SQL Server 2016 – Part 3

November 1, 2015 5 comments

In my [previous post] I discussed about how to Import or Read a JSON string and convert it in relational/tabular format in row/column from.

Today in this post I’ll talk about how to read/parse JSON string with nested array of elements, just like XML.


Native JSON support in SQL Server 2016 provides you few functions to read and parse your JSON string into relational format and these are:

– OPENJSON() Table valued function: parses JSON text and returns rowset view of JSON.

– JSON_Value() Scalar function: returns a value from JSON on the specified path.

We will see usage of both the functions in our example below:


Here, we have just one nested element, and the OPENJSON() function will get you the child elements values.

–> Method #1.a. Using OPENJSON() function:

DECLARE @json NVARCHAR(1000)
SELECT @json =
N'{
  "OrderHeader": [
    {
      "OrderID": 100,
      "CustomerID": 2000,

      "OrderDetail":
        {
          "ProductID": 2000,
		  "UnitPrice": 350
		}
    }
  ]
}'

SELECT
	OrderID,
	CustomerID,

	[OrderDetail.ProductID] AS ProductID,
	[OrderDetail.UnitPrice] AS UnitPrice

FROM OPENJSON (@json, '$.OrderHeader')
WITH (
	OrderID INT,
	CustomerID INT,

	[OrderDetail.ProductID] INT,
	[OrderDetail.UnitPrice] INT
) AS Orders
OrderID	CustomerID	ProductID	UnitPrice
100	2000		2000		350



But, if you have more than one nested elements the same query will give just 1 row with NULL values under the child columns, like this.

–> Method #1.b. In case of multiple child elements:

DECLARE @json NVARCHAR(1000)
SELECT @json =
N'{
  "OrderHeader": [
    {
      "OrderID": 100,
      "CustomerID": 2000,

      "OrderDetail": [
        {
          "ProductID": 2000,
		  "UnitPrice": 350
		},
		{
		  "ProductID": 3000,
          "UnitPrice": 450
        }
      ]
    }
  ]
}'

SELECT
	OrderID,
	CustomerID,

	[OrderDetail.ProductID] AS ProductID,
	[OrderDetail.UnitPrice] AS UnitPrice

FROM OPENJSON (@json, '$.OrderHeader')
WITH (
	OrderID INT,
	CustomerID INT,

	[OrderDetail.ProductID] INT,
	[OrderDetail.UnitPrice] INT
) AS Orders
OrderID	CustomerID	ProductID	UnitPrice
100	2000		NULL		NULL

You might be expecting 2 rows with same OrderID & CustomerID, with different ProductID & UnitPrice, right?

Instead you get ProductID & UnitPrice column values as NULL. Because, here you are having array of child elements with OrderDetail node (notice the square-bracket after “OrderDetail”: node), thus the Query is not able to find the key on the path.


In this case what you have to do is, use the array positions with square brackets (“[” and “]”) in your query and call out separate columns for each child element, like below:

DECLARE @json NVARCHAR(1000)
SELECT @json =
N'{
  "OrderHeader": [
    {
      "OrderID": 100,
      "CustomerID": 2000,

      "OrderDetail": [
        {
          "ProductID": 2000,
		  "UnitPrice": 350
		},
		{
		  "ProductID": 3000,
          "UnitPrice": 450
        }
      ]
    }
  ]
}'

SELECT
	OrderID,
	CustomerID,

	[OrderDetail[0]].ProductID] AS ProductID1,
	[OrderDetail[0]].UnitPrice] AS UnitPrice1,

	[OrderDetail[1]].ProductID] AS ProductID2,
	[OrderDetail[1]].UnitPrice] AS UnitPrice2

FROM OPENJSON (@json, '$.OrderHeader')
WITH (
	OrderID INT,
	CustomerID INT,

	[OrderDetail[0]].ProductID] INT,
	[OrderDetail[0]].UnitPrice] INT,

	[OrderDetail[1]].ProductID] INT,
	[OrderDetail[1]].UnitPrice] INT
) AS Orders
OrderID	CustomerID	ProductID1	UnitPrice1	ProductID2	UnitPrice2
100	2000		2000		350		3000		450



You can also specify the child elements with full path by using the dollar sign “$” inside the WITH() clause (instead at column level above), like below:

–> Method #2. Using OPENJSON() function:

DECLARE @json NVARCHAR(1000)
SELECT @json =
N'{
  "OrderHeader": [
    {
      "OrderID": 100,
      "CustomerID": 2000,

      "OrderDetail": [
        {
          "ProductID": 2000,
		  "UnitPrice": 350
		},
		{
		  "ProductID": 3000,
          "UnitPrice": 450
        }
      ]
    }
  ]
}'

SELECT
	OrderID,
	CustomerID,

	ProductID1,
	UnitPrice1,

	ProductID2,
	UnitPrice2

FROM OPENJSON (@json, '$.OrderHeader')
WITH (
	OrderID    INT '$.OrderID',
	CustomerID INT '$.CustomerID',

	ProductID1 INT '$.OrderDetail[0].ProductID',
	UnitPrice1 INT '$.OrderDetail[0].UnitPrice',

	ProductID2 INT '$.OrderDetail[1].ProductID',
	UnitPrice2 INT '$.OrderDetail[1].UnitPrice'
) AS Orders
OrderID	CustomerID	ProductID1	UnitPrice1	ProductID2	UnitPrice2
100	2000		2000		350		3000		450

Ok, so by using the key path and the array position we can get the child elements value in our Query result-set by using above 2 methods.


But instead of having them in separate columns how about pulling them in separate rows, this will also make your query dynamic as you would not know the number of child-elements before hand, right?

This can be done by CROSS APPLYing the JSON child node with the parent node and using the JSON_Value() function, like shown below:

–> Method #3. Using JSON_Value() with OPENJSON() function:

DECLARE @json NVARCHAR(1000)
SELECT @json =
N'{
  "OrderHeader": [
    {
      "OrderID": 100,
      "CustomerID": 2000,

      "OrderDetail": [
        {
          "ProductID": 2000,
		  "UnitPrice": 350
		},
		{
		  "ProductID": 3000,
          "UnitPrice": 450
        },
		{
		  "ProductID": 4000,
          "UnitPrice": 550
        }
      ]
    }
  ]
}'

SELECT
	JSON_Value (c.value, '$.OrderID') as OrderID,
	JSON_Value (c.value, '$.CustomerID') as CustomerID,
	JSON_Value (p.value, '$.ProductID') as ProductID,
	JSON_Value (p.value, '$.UnitPrice') as UnitPrice

FROM OPENJSON (@json, '$.OrderHeader') as c
CROSS APPLY OPENJSON (c.value, '$.OrderDetail') as p
OrderID	CustomerID	ProductID	UnitPrice
100	2000		2000		350
100	2000		3000		450
100	2000		4000		550



Ok, that’s it for today.

In my [next post] I’ll talk about storing JSON string in a table and doing some hands-on with it.


Passing multiple/dynamic values to Stored Procedures & Functions | Part 5 – by passing JSON string

October 31, 2015 3 comments

This post is part of the [Passing multiple/dynamic values to Stored Procedures & Functions] series, and as well as the new feature Native JSON support in SQL Server 2016.

Adding the fifth part to this series we will use JSON string that will contain the set of values and pass as an JSON param variable to the SP. Then inside the SP we will parse this JSON and use those values in our SQL Queries, just like we did in previous posts with CSV/XML strings:

USE [AdventureWorks2014]
GO

-- Create an SP with NVARCHAR type parameter for JSON string:
CREATE PROCEDURE uspGetPersonDetailsJSON (
	@persons NVARCHAR(MAX)
)
AS
BEGIN
	--DECLARE @persons NVARCHAR(MAX)
	--SET @persons = '{"root":[{"Name":"Charles"},{"Name":"Jade"},{"Name":"Jim"},{"Name":"Luke"},{"Name":"Ken"}]}'

	SELECT Name
	INTO #tblPersons
	FROM OPENJSON (@persons, '$.root')
	WITH (
		Name NVARCHAR(100)
	)

	SELECT
		BusinessEntityID,
		Title,
		FirstName,
		MiddleName,
		LastName,
		ModifiedDate
	FROM [Person].[Person] PER
	WHERE EXISTS (
		SELECT *
		FROM #tblPersons tmp
		WHERE tmp.Name  = PER.FirstName
	)
	ORDER BY FirstName, LastName

	DROP TABLE #tblPersons
END
GO

-- Create JSON string:
DECLARE @json NVARCHAR(1000)
SET @json = N'{
  "root": [
    { "Name": "Charles" },
    { "Name": "Jade" },
    { "Name": "Jim" },
    { "Name": "Luke" },
    { "Name": "Ken" }
  ]
}'

-- Use the JSON string as parameter which calling the SP:
EXEC uspGetPersonDetailsJSON @json
GO

-- Check the output, objective achieved

-- Final Cleanup
DROP PROCEDURE uspGetPersonDetailsXML
GO



Thus you can also use JSON string similar to the way you used XML string, to pass multiple and dynamic number of parameters to your Stored Procedures.

As JSON feature is new to SQL Server 2016, so this method will only work with SQL Server 2016 and above versions.



Import/Read a JSON string and convert it in tabular (row/column) form | SQL Server 2016 – Part 2

October 30, 2015 5 comments

In my [previous post] I discussed on how to format/convert any Query/Table data to a string in JSON format. JSON in SQL Server was limited to this feature only till the CTP 2 version.

But now with the CTP 3 release you can do reverse of it also, means now you can read back JSON data and convert it to tabular or row & column format.


Let’s check this by taking same sample data from our previous JSON-Export post.

DECLARE @json NVARCHAR(1000)
SELECT @json = N'{"StudList":
[
   {
      "ID":1,
      "FirstName":"Manoj",
      "LastName":"Pandey",
      "Class":10,
      "Marks":80.5
   },
   {
      "ID":2,
      "FirstName":"Saurabh",
      "LastName":"Sharma",
      "Class":11,
      "Marks":82.7
   },
   {
      "ID":3,
      "FirstName":"Kanchan",
      "LastName":"Pandey",
      "Class":10,
      "Marks":90.5
   },
   {
      "ID":4,
      "FirstName":"Rajesh",
      "LastName":"Shah",
      "Class":11,
      "Marks":70.3
   },
   {
      "ID":5,
      "FirstName":"Kunal",
      "LastName":"Joshi",
      "Class":12,
      "Marks":64.7
   }
]'

SELECT ID, FirstName, LastName, Class, Marks
FROM OPENJSON (@json, '$.StudList')
WITH (
	ID INT,
	FirstName VARCHAR(255),
	LastName VARCHAR(255),
	Class INT,
	Marks DECIMAL(3,1)
) AS StudList

– Output:
SQL Server 2016 - JSON export 01

Well, that was simple, isn’t it!!!





In my [next post] I’ll talk about Nested Properties in a JSON string with single and multiple elements.



Export/Convert Table or SQL Query data to JSON string format | SQL Server 2016 – Part 1

June 1, 2015 6 comments

In my [previous post] we saw JOSN added as a new feature in SQL Server 2016.


–> Just like XML now you can also:

1. Store JSON data in SQL Server in table columns as NVARCHAR datatype.

2. Export SQL tables rows to JSON data.

3. Query external JSON data and store back in SQL tables.


–> Note:

– With this CTP2 release you can only export data as JSON string.

– But with the release of CTP3 you will also be able to read JSON data by T-SQL query and convert it into tabular (row/column) format, and will support indexes.


–> Just like XML for exporting JSON data you can use FOR JSON [AUTO | PATH] syntax:

1. FOR JSON AUTO: option automatically creates a nested JSON data with sub arrays based on the table hierarchy used in the Query. The AUTO option must have a FROM clause.

2. FOR JSON PATH: option enables you to define the structure of output of JSON data using the column names with aliases by using a dot separator.


–> Let’s see how export to JSON works:

– I’ll create a sample table and insert few rows in it:

CREATE TABLE Students (
	ID INT IDENTITY(1,1) NOT NULL,
	FirstName VARCHAR(255),
	LastName VARCHAR(255),
	Class INT,
	Marks DECIMAL(3,1)
)

INSERT INTO Students (FirstName, LastName, Class, Marks)
SELECT 'Manoj',   'Pandey', 10, 80.5
UNION ALL
SELECT 'Saurabh', 'Sharma', 11, 82.7
UNION ALL
SELECT 'Kanchan', 'Pandey', 10, 90.5



1. Let’s check the “FOR JSON AUTO” option:

SELECT ID, FirstName, LastName, Class, Marks
FROM Students
FOR JSON AUTO -- here

– Output with AUTO option:
SQL Server 2016 JSON 01

– Output with AUTO and ROOT() option:

SELECT ID, FirstName, LastName, Class, Marks
FROM Students
FOR JSON AUTO, ROOT('StudList') -- here

– This is how a formatted JSON looks like:

{
  "StudList": [
    {
      "ID": 1,
      "FirstName": "Manoj",
      "LastName": "Pandey",
      "Class": 10,
      "Marks": 80.5
    },
    {
      "ID": 2,
      "FirstName": "Gaurav",
      "LastName": "Pandey",
      "Class": 11,
      "Marks": 82.7
    },
    {
      "ID": 3,
      "FirstName": "Garvit",
      "LastName": "Pandey",
      "Class": 10,
      "Marks": 90.5
    }
  ]
}

This option as mentioned previously formats the JSON document automatically based upon the columns provided in the Query.


2. Now let’s check the “FOR JSON PATH” option: with this option you can use the dot syntax as used in below Query to form a nested output.

SELECT
	ID,
	FirstName AS "StudentName.FirstName",
	LastName AS "StudentName.LastName",
	Marks
FROM Students
FOR JSON PATH -- here

– Output with PATH option:

[
   {
      "ID":1,
      "StudentName":{
         "FirstName":"Manoj",
         "LastName":"Pandey"
      },
      "Marks":80.5
   },
   {
      "ID":2,
      "StudentName":{
         "FirstName":"Saurabh",
         "LastName":"Sharma"
      },
      "Marks":82.7
   },
   {
      "ID":3,
      "StudentName":{
         "FirstName":"Kanchan",
         "LastName":"Pandey"
      },
      "Marks":90.5
   }
]

As you can see with PATH option you can create wrapper objects (here “StudentName”) and nest properties (here “FirstName” & “LastName”).


–> You can also check this demo in this video:




With the current release of CTP2 here you saw how we can export a SQL Table rows to JSON data. As soon as CTP3 will release we will see how can we read data back from from JSON string and convert it to tabular (row/column) format.


–> Check my [next post] on how to Import/Read JSON string and convert it in rational-tabular format in form of rows/columns.


Check more about JSON support on [MSDN BoL].
