Save XML in a file | Read XML from a file (in SQL Server)

October 20, 2011 6 comments

USE [AdventureWorks]
GO

-- Save XML records to a file:
DECLARE @fileName VARCHAR(50)

DECLARE @sqlStr VARCHAR(1000)
DECLARE @sqlCmd VARCHAR(1000)

SET @fileName = 'E:\SQL_Queries\test.xml'
SET @sqlStr = 'select TOP 50 [ContactID], [Title], [FirstName], [MiddleName], [LastName], [Suffix], [EmailAddress], [Phone] from AdventureWorks.Person.Contact FOR XML PATH(''Contact''), ROOT(''Person.Contact'')'

SET @sqlCmd = 'bcp "' + @sqlStr + '" queryout ' + @fileName + ' -w -T'

EXEC xp_cmdshell @sqlCmd
Progress:-
NULL
Starting copy...
NULL
6 rows copied.
Network packet size (bytes): 4096
Clock Time (ms.) Total     : 15     Average : (400.00 rows per sec.)
NULL

Check the file in the directory set above in @filename variable.

Now we will see how can we read the XML file saved above. Will store the XML in into a SQL Server XML variable
and query it with SELECT statement:

DECLARE @xmlStr XML

-- Storing XML records into a XML variable:

SELECT @xmlStr = BulkColumn
FROM OPENROWSET(BULK 'E:\SQL_Queries\test.xml', SINGLE_CLOB) AS X

The above statement gave me ERROR:
SINGLE_CLOB requires a double-byte character set (DBCS) (char) input file. The file specified is Unicode.
Because the XML BCP’d to the file above was saved in unicode format. So use SINGLE_NCLOB instead of SINGLE_CLOB.

SELECT @xmlStr = BulkColumn
FROM OPENROWSET(BULK 'E:\SQL_Queries\test.xml', SINGLE_NCLOB) AS X

This again gave me ERROR:
XML parsing: line 1, character 2034, illegal qualified name character
Because the file saved in xml file has CrLf (Carriage Return & Line Feed) in between.
So I removed the CrLf from the XML string as shown below.

SELECT @xmlStr = REPLACE(REPLACE(BulkColumn,CHAR(10),''),CHAR(13),'')
FROM OPENROWSET(BULK 'E:\SQL_Queries\test.xml', SINGLE_NCLOB) AS X

-- Querying the XML stored in @xmlStr variable with SELECT statement:
SELECT
	T.C.value('ContactID[1]', 'INT') as [ContactID],
	T.C.value('Title[1]', 'VARCHAR(8)') as [Title],
	T.C.value('FirstName[1]', 'VARCHAR(50)') as [FirstName],
	T.C.value('MiddleName[1]', 'VARCHAR(50)') as [MiddleName],
	T.C.value('LastName[1]', 'VARCHAR(50)') as [LastName],
	T.C.value('Suffix[1]', 'VARCHAR(10)') as [Suffix],
	T.C.value('EmailAddress[1]', 'VARCHAR(50)') as [EmailAddress],
	T.C.value('Phone[1]', 'VARCHAR(50)') as [Phone]
FROM @xmlStr.nodes('//Person.Contact/Contact') as T(C)

Using DMLs with XMLs – INSERT (SQL Server)

October 17, 2011 1 comment

In my previous XML related posts I wrote about how can we query and SELECT XML strings & pull data from parent-child nodes and hierarchies. In this post we’ll see how we can modify that XML data by applying DMLs to it.

In this part let’s see how we can INSERT new records in a XML string:

DECLARE @xml XML

-- Creating sample XML string with single row:
SET @xml=N'<Root>
    <stud id="1">
		<fname>Manoj</fname>
		<lname>Pandey</lname>
		<class>10</class>
		<marks>80.5</marks>
	</stud>
</Root>';

-- Now check the sample row by querying it with SELECT statement:
SELECT
	Tab.Col.value('@id','int') AS ID,
	Tab.Col.value('fname[1]','nvarchar(20)') AS FirstName,
	Tab.Col.value('lname[1]','nvarchar(20)') AS LastName,
	Tab.Col.value('class[1]','int') AS class,
	Tab.Col.value('marks[1]','float') AS Marks
FROM @xml.nodes('/Root/stud') Tab(Col)

Output:-
ID FirstName LastName class Marks
1 Manoj Pandey 10 80.5
DMLs in XML provides a common function xml.modify() to modify the XML string in 3 ways, i.e. INSERT, UPDATE & DELETE. Here we will see how we can INSERT new records at different positions in the sample XML created above:

--// Now INSERTing some more records:

-- 1. INSERT (basic)
SET @xml.modify('
insert <stud id="2">
		<fname>Saurabh</fname>
		<lname>Sharma</lname>
		<class>11</class>
		<marks>82.7</marks>
	</stud>
into (/Root)[1]');

-- 2. INSERT at beginning, first record
SET @xml.modify('
insert <stud id="0">
		<fname>Kanchan</fname>
		<lname>Pandey</lname>
		<class>10</class>
		<marks>90.5</marks>
	</stud>
as first
into (/Root)[1]');

-- 3. INSERT at end, last record
SET @xml.modify('
insert <stud id="3">
		<fname>Rajesh</fname>
		<lname>Shah</lname>
		<class>11</class>
		<marks>70.3</marks>
	</stud>
as last
into (/Root)[1]');

-- Let's check the records just inserted:
SELECT
	Tab.Col.value('@id','int') AS ID,
	Tab.Col.value('fname[1]','nvarchar(20)') AS FirstName,
	Tab.Col.value('lname[1]','nvarchar(20)') AS LastName,
	Tab.Col.value('class[1]','int') AS class,
	Tab.Col.value('marks[1]','float') AS Marks
FROM @xml.nodes('/Root/stud') Tab(Col)

Output:-
ID FirstName LastName class Marks
0 Kanchan Pandey 10 90.5
1 Manoj Pandey 10 80.5
2 Saurabh Sharma 11 82.7
3 Rajesh Shah 11 70.3

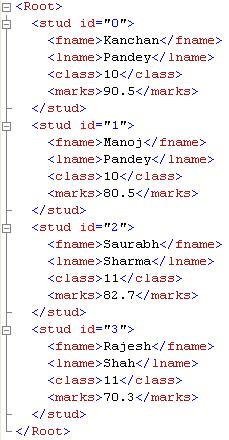

-- Check final XML with INSERTed records above:
SELECT @xml

In my next XML-DML post we will see UPDATE and DELETE operations.

more examples on querying XML …with CROSS APPLY & XQuery – in SQL Server

September 22, 2011 3 comments

My quest to know more about XML and to use it in SQL language always encourages me to google this topic and religiously follow the MSDN’s SQL Server XML forum. I liked this post on XML, it contains some more ways to query XML data cited by some SQL experts.

In my previous posts I’ve shown some practical examples on how to query your XML data or string and get results in tabular format. Following are the links I’ve previously posted on this topic:

1. https://sqlwithmanoj.com/2011/01/28/select-an-xml-to-table/

2. https://sqlwithmanoj.com/2011/07/13/query-xml-string-in-tabular-format/

3. https://sqlwithmanoj.com/2011/07/13/select-or-query-nodes-in-hierarchial-or-nested-xml/


–> Let’s see one more example and multiple ways to query an XML string:

DECLARE @XML XML
SET @XML =
'<Input>
    <Courses>
        <Course>
            <Id>27</Id>
            <Students>
                <Id>19876</Id>
                <Id>19878</Id>
            </Students>
        </Course>
        <Course>
            <Id>29</Id>
            <Students>
                <Id>19879</Id>
            </Students>
        </Course>
    </Courses>
</Input>'
-> Desired Output: CourseId Students
27	 19876
27	 19878
29	 19879
-- Method# 1. Simple approach but bit costly | Query Cost: 83%
select t.c.value('../../Id[1]', 'INT') as CourseId,
	t.c.value('.', 'INT') as Students
from @XML.nodes('//Input/Courses/Course/Students/Id') as t(c)

-- Method# 2. By using Cross Apply | Query Cost: 17%
select t.c.value('Id[1]', 'INT') as CourseId,
	t1.c1.value('.', 'INT') as Students
from @XML.nodes('//Input/Courses/Course') as t(c)
cross apply t.c.nodes('Students/Id') as t1(c1)

The above 2 approaches shows that the second one with CROSS APPLY is much more performant.

– The traditional approach (#1) traverses the nodes (parent/child) and pulls the desired data.

– But the 2nd one with APPLY clause fetches specific node’s entire row and join it with the SELECTed data.


The NODES() function allows us to identify a particular node and map it into a new row. As the NODES function returns a rowset thus it can be queried by a SELECT statement or used like a UDF by applying APPLY clause. More on NODES(), here’s the link.


–> Let’s see an another approach by applying XQuery in a QUERY() function. The XQuery is a string, an XQuery expression, that queries for XML nodes such as elements, attributes, in an XML instance. More on QUERY(), here’s the link.

-- Method# 3. By using XML Query:

DECLARE @temp XML
set  @temp = @XML.query('
for $a in /Input/Courses/Course/Id,
    $b in /Input/Courses/Course/Students/Id
where $a/.. is $b/../..
return element detail {attribute CourseID {string($a)},attribute StudentID {string($b)}}')

select t.c.value('@CourseID','int') as [CourseID],
	t.c.value('@StudentID','int') as [StudentID]
from @temp.nodes('/detail') as t(c)

Will see some more examples & more stuff on XML in my forthcoming posts.


>> Check & Subscribe my [YouTube videos] on SQL Server.



Categories: XML Tags: , , ,

SELECT or Query nodes in hierarchial or nested XML

July 13, 2011 16 comments

On this post I’ll show how to retrieve information from nested XML.

I’ve shown this with an example with 2 approaches/methods and it’s up to you what to chose based upon their performance. Here we go:

DECLARE @xml XML

SET @xml=N'<Root>
	<orderHRD ID="101">
		<custID>501</custID>
		<orderDTL ID="201">
			<prodID>1</prodID>
			<qty>5</qty>
			<cost>25.12</cost>
		</orderDTL>
		<orderDTL ID="202">
			<prodID>2</prodID>
			<qty>3</qty>
			<cost>30.00</cost>
		</orderDTL>
	</orderHRD>
	<orderHRD ID="102">
		<custID>502</custID>
		<orderDTL ID="203">
			<prodID>11</prodID>
			<qty>12</qty>
			<cost>140.78</cost>
		</orderDTL>
	</orderHRD>
	<orderHRD ID="103">
		<custID>503</custID>
		<orderDTL ID="204">
			<prodID>6</prodID>
			<qty>8</qty>
			<cost>60.35</cost>
		</orderDTL>
		<orderDTL ID="205">
			<prodID>9</prodID>
			<qty>2</qty>
			<cost>10.50</cost>
		</orderDTL>
		<orderDTL ID="206">
			<prodID>10</prodID>
			<qty>6</qty>
			<cost>120.89</cost>
		</orderDTL>
	</orderHRD>
</Root>';

-- Method #1: Query nested XML nodes by traversing backward and forward.
-- Query Cost: 81%
select
	Tab.Col.value('../@ID', 'int') as OrderHDR_ID,
	Tab.Col.value('../custID[1]', 'int') as Cust_ID,
	Tab.Col.value('@ID', 'int') as OrderDTL_ID,
	Tab.Col.value('prodID[1]', 'int') as Prod_ID,
	Tab.Col.value('qty[1]', 'int') as QTY,
	Tab.Col.value('cost[1]', 'float') as Cost,
	Tab.Col.value('count(../orderDTL)', 'int') as Cust_Ord_Count
from @xml.nodes('/Root/orderHRD/orderDTL') Tab(Col)

-- Method #2: Query nested XML nodes by using CROSS APPLY on appropriate node.
-- Query Cost: 19%
select
	Tab.Col.value('@ID', 'int') as OrderHDR_ID,
	Tab.Col.value('custID[1]', 'int') as Cust_ID,
	Tab1.Col1.value('@ID', 'int') as OrderDTL_ID,
	Tab1.Col1.value('prodID[1]', 'int') as Prod_ID,
	Tab1.Col1.value('qty[1]', 'int') as QTY,
	Tab1.Col1.value('cost[1]', 'float') as Cost,
	Tab.Col.value('count(./orderDTL)', 'int') as Cust_Ord_Count
from @xml.nodes('/Root/orderHRD') as Tab(Col)
cross apply Tab.Col.nodes('orderDTL') as Tab1(Col1)
GO

Output:-
OrderHDR_ID Cust_ID OrderDTL_ID Prod_ID QTY Cost
101	    501	    201		1	5   25.12
101	    501	    202		2	3   30
102	    502	    203		11	12  140.78
103	    503	    204		6	8   60.35
103	    503	    205		9	2   10.5
103	    503	    206		10	6   120.89

Method #2 is much more effecient than first one. As 1st method uses forward-backward traversal approach. The 2nd method uses APPLY operator which gets Nodes information from a specific parent.

This topic was also discussed on MSDN TSQL’s forum few weeks back, link.


>> Check & Subscribe my [YouTube videos] on SQL Server.



Combine multiple ROWS to CSV String… and vice-versa

September 16, 2010 16 comments

There are times when you want to combine values from multiple rows of a single column into a CSV (Comma Separates Value) String.

Like combining multiple orders of each customer into one single row, or multiple Cities against each State as shown below.

It was a bit difficult to do in SQL Server 2000 and requires to create a customized function or a script.

But with SQL Server’s 2005 version, the new “PATH” mode with “FOR XML” provides us a way to get the desired output. Its a bit tricky but will do the needful, that’s why I’ve also added this post for my reference as well.

CREATE TABLE #tempCityState (State VARCHAR(5), City VARCHAR(50))

INSERT INTO #tempCityState
SELECT 'CO', 'Denver' UNION
SELECT 'CO', 'Teluride' UNION
SELECT 'CO', 'Vail' UNION
SELECT 'CO', 'Aspen' UNION
SELECT 'CA', 'Los Angeles' UNION
SELECT 'CA', 'Hanford' UNION
SELECT 'CA', 'Fremont' UNION
SELECT 'WA', 'Seattle' UNION
SELECT 'WA', 'Redmond' UNION
SELECT 'WA', 'Bellvue'

SELECT * FROM #tempCityState
State	City
CA	Hanford
CA	Fremont
CA	Los Angeles
CO	Denver
CO	Aspen
CO	Vail
CO	Teluride
WA	Seattle
WA	Redmond
WA	Bellvue



Using the “FOR XML PATH” syntax:

SELECT DISTINCT State, (SELECT SUBSTRING((SELECT ',' + City
 FROM #tempCityState
 WHERE State  = t.State
 FOR XML PATH('')),2,200000)) AS Cities
INTO #tempCityStateCSV
FROM #tempCityState t

-- OR --

SELECT DISTINCT State, (SELECT STUFF((SELECT ',' + City
 FROM #tempCityState
 WHERE State  = t.State
 FOR XML PATH('')),1,1,'')) AS Cities
FROM #tempCityState t

SELECT * FROM #tempCityStateCSV
State	Cities
CA	Hanford,Fremont,Los Angeles
CO	Denver,Aspen,Vail,Teluride
WA	Seattle,Redmond,Bellvue



Now, converting it back to multiple rows:

SELECT A.[State], Split.a.value('.', 'VARCHAR(100)') AS City
FROM (SELECT [State], CAST ('<M>' + REPLACE([Cities], ',', '</M><M>') + '</M>' AS XML) AS String
	FROM  #tempCityStateCSV) AS A
CROSS APPLY String.nodes ('/M') AS Split(a)
ORDER BY 1,2
State	City
CA	Fremont
CA	Hanford
CA	Los Angeles
CO	Aspen
CO	Denver
CO	Teluride
CO	Vail
WA	Bellvue
WA	Redmond
WA	Seattle
