Archive for July, 2013

Getting Started with Hekaton (Memory Optimized) tables | SQL Server 2014

July 16, 2013 11 comments

Hekaton, which also means in-Memory or Memory Optimized Tables, is a Microsoft Code Project for its new version of SQL Server 2014. This version of SQL Server mainly focuses on the high performance In-Memory Database workloads. Which means this version includes Memory Optimized Tables which will reside into Server’s memory and efficiently provides execution of Business Logic by completely reducing I/O between Disk & Memory.

So, as soon as a Memory Optimized Table is created the data it contains will also load into Memory. Let’s see here a Hands-On with Hekaton Tables by simple T-SQL Scripts:

–> Let’s first create a Test Database:

USE [master]
GO

CREATE DATABASE [ManTest]
 CONTAINMENT = NONE
 ON  PRIMARY (
	NAME = N'ManTest',
	FILENAME = N'D:\SQLServer2014\MSSQL\DATA\ManTest.mdf',
	SIZE = 5120KB,
	FILEGROWTH = 1024KB
 )
 LOG ON (
	NAME = N'ManTest_log',
	FILENAME = N'D:\SQLServer2014\MSSQL\Log\ManTest_log.ldf',
	SIZE = 1024KB,
	FILEGROWTH = 10%
 )
GO

–> Now we will create a FileGroup and associate the [ManTest] Database with it:

USE [ManTest]
GO

-- Add MEMORY_OPTIMIZED_DATA filegroup to the database.
ALTER DATABASE [ManTest]
	ADD FILEGROUP [ManTestFG] CONTAINS MEMORY_OPTIMIZED_DATA
GO

-- Add file to the MEMORY_OPTIMIZED_DATA filegroup.
ALTER DATABASE [ManTest]
ADD FILE
  ( NAME = ManTestFG_file1,
    FILENAME = N'D:\SQLServer2014\MSSQL\DATA\Datasample_database_1') -- You might need to check and correct the path here.
TO FILEGROUP ManTestFG
GO

A SQL Server FileGroup is required to store memory_optimized_data in a SQL Server Database. As per MSDN this FileGroup will be used to guarantee durability of memory-resident data in the event of a server crash or restart. During the crash recovery phase in server startup, the data is recovered from this FileGroup and loaded back into memory.

–> Now we will create Memory Optimized Table with new Options added in CREATE TABLE syntax:

-- Create memory optimized table and hash indexes on the memory optimized table:
CREATE TABLE dbo.Person_memoryOptimizedTable
(
	PersonID INT NOT NULL
		PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 19972),

	PersonName NVARCHAR(100) NOT NULL,

	DateAdded DATETIME NOT NULL

) WITH (MEMORY_OPTIMIZED = ON, DURABILITY = SCHEMA_AND_DATA)
GO

The Options:
– NONCLUSTERED HASH WITH : Clustered Index not allowed (as indexes are not stored, but re-created after SQL Server is restarted), so a PK should be defined with NonClustered Index of Type ‘Hash’.
– BUCKET_COUNT : Indicates the number of buckets that should be created in the Hash index.
– MEMORY_OPTIMIZED=ON : makes the table Memory Optimized.
– DURABILITY = SCHEMA_AND_DATA : makes the Table and its Data available all the time in-Memory.

Note:
– Indexes can only be created online with CREATE TABLE statement.
– If you don’t provide the DURABILITY = SCHEMA_AND_DATA option, then the Data will be persisted in the Table only.
– The Option DURABILITY = SCHEMA_ONLY will not make the Table Data Durable on Disk and data will lost after Server Restart or Crash, but the Table Schema will be available.

–> Let’s insert some records in the table created above:

-- Inserting records into the Memory Optimized Table from [Person] table in [AdventureWorks] DB:
INSERT INTO dbo.Person_memoryOptimizedTable
SELECT
	[BusinessEntityID],
	CONCAT([FirstName], ' ', [MiddleName], ' ', [LastName]) AS PersonName,
	GETDATE() AS DateAdded
FROM [AdventureWorks2012].[Person].[Person]

You will get following error:
Msg 41317, Level 16, State 3, Line 34
A user transaction that accesses memory optimized tables or natively compiled procedures cannot access more than one user database or databases model and msdb, and it cannot write to master.

This means that you cannot insert records into Memory Optimized Tables across databases.
So, we have a workaround here, we will insert records into a #temp table first and then insert from this #temp table.

-- So, I'll insert records from [AdvantureWorks] Database to #temp table first:
SELECT
	[BusinessEntityID],
	CONCAT([FirstName], ' ', [MiddleName], ' ', [LastName]) AS PersonName,
	GETDATE() AS DateAdded
into #tempPerson
FROM [AdventureWorks2012].[Person].[Person]
-- (19972 row(s) affected)

-- Now, I can insert records from #temp table into the Memory Optimized Table:
INSERT INTO dbo.Person_memoryOptimizedTable
SELECT
	[BusinessEntityID],
	PersonName,
	DateAdded
FROM #tempPerson
-- (19972 row(s) affected)

-- Let's check contents of the Table:
SELECT *
FROM Person_memoryOptimizedTable
GO

So, we here saw how to create Memory Optimized Tables and create a Separate Database to store them by allocating a FileGroup to the DB.

-- Final Cleanup
DROP TABLE dbo.Person_memoryOptimizedTable

DROP TABLE #tempPerson
GO

USE master
GO

DROP DATABASE ManTest
GO



Update: Know more about In-Memory tables:




Next post I’ll discuss more about Memory Optimized tables, their benefits and limitations.



Advertisements

Convert XML to Columns – MSDN TSQL forum

July 13, 2013 Leave a comment

–> Question:

Below is the XML that i need to covert into columns please help, XML is coming from column name called “DESC” table name is “rawXML”

Columns: USER id, US_USERID, US_PASSWORD, US_SHORT, FIRST, LAST, US_LAST_PASSWORD_UPDATE

<USER id="05100">

 <US_USERID>YU</US_USERID>

  <US_PASSWORD>4026531934</US_PASSWORD>

  <US_SHORT>yu</US_SHORT>

  <US_XPN>

    <FIRST>Yehuda</FIRST>

    <LAST>Unger</LAST>

  </US_XPN>

  <US_LAST_PASSWORD_UPDATE>2006-01-19T16:10</US_LAST_PASSWORD_UPDATE>
</USER>



–>My Answer:

Check the query below:

declare @xml xml
set @xml = '<USER id="05100">

 <US_USERID>YU</US_USERID>

  <US_PASSWORD>4026531934</US_PASSWORD>

  <US_SHORT>yu</US_SHORT>

  <US_XPN>

    <FIRST>Yehuda</FIRST>

    <LAST>Unger</LAST>

  </US_XPN>

  <US_LAST_PASSWORD_UPDATE>2006-01-19T16:10</US_LAST_PASSWORD_UPDATE>
</USER>'

select
	t.c.value('../@id[1]', 'varchar(10)') as [USER],
	t.c.value('../US_USERID[1]', 'varchar(10)') as [US_USERID],
	t.c.value('../US_PASSWORD[1]', 'varchar(10)') as [US_PASSWORD],
	t.c.value('../US_SHORT[1]', 'varchar(10)') as [US_SHORT],
	t.c.value('./FIRST[1]', 'varchar(10)') as [FIRST],
	t.c.value('./LAST[1]', 'varchar(10)') as [LAST],
	t.c.value('../US_LAST_PASSWORD_UPDATE[1]', 'varchar(10)') as [US_LAST_PASSWORD_UPDATE]
from @xml.nodes('//USER/US_XPN') as t(c)



Ref Link.


Finally installed SQL Server 2014 CTP1

July 12, 2013 3 comments

Last month I posted the availability of the first Community Test Preview (CTP-1) of SQL Server 2014, [link].

As mentioned officially by Microsoft this preview (CTP-1) should be installed on a fresh OS (Windows 8 or Server 2012) and not with existing Dev machine. So, some days back I finally managed to get an isolated machine and installed on it. The Installation is similar to SQL Server 2012, only difference is the version number till now.

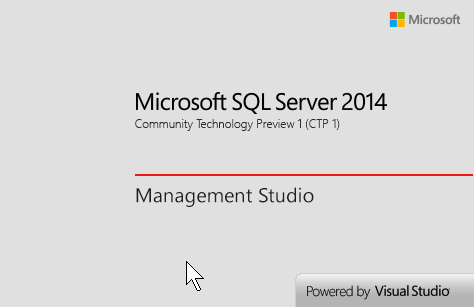

After successful install on opening SSMS you will see following Splash Screen with 2014 branding:
SQLServer2014_SplashScreen

.

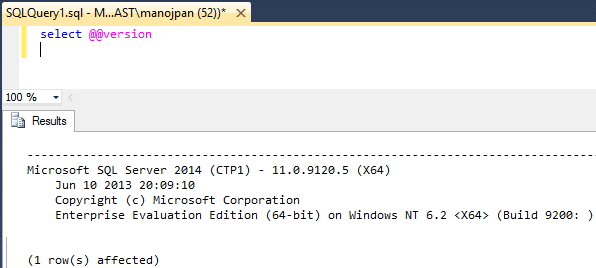

–> On checking the version by SQL statement you get:
SQLServer2014Version2

.

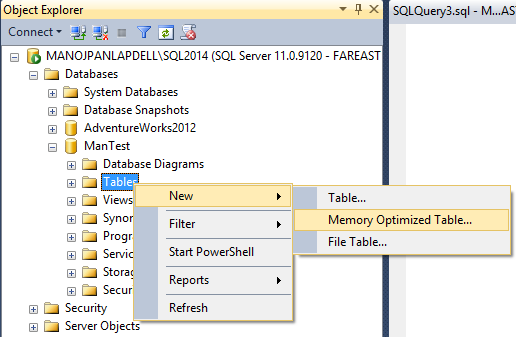

–> On checking the “Tables” section on Object Explorer it gives you option to create “Memory Optimized Tables”:
SQLServer2014HekatonTables
… but this is not graphical (like Create Table), it provides a Script template and opens it in SQL Query Editor.

.

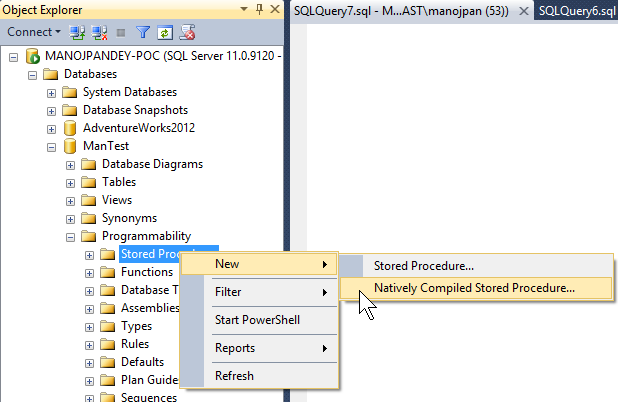

–> On checking the “Stored Procedures” section on Object Explorer it gives you option to create “Natively Compiled Stored Procedures”:
SQLServer2014HekatonSPs
… and just like “Create Procedure” it also provides a Script template and opens it in SQL Query Editor.

Next post I’ll come with some hands-on with Creating a Database, Memory Optimized tables and new things introduced in SQL Server 2014.

SQL Server 2014 | New Features

July 5, 2013 1 comment

Around 3 years back (~ Nov’2010) the first Community Test Preview (CTP-1) of SQL Server 2012 was released, and with great excitement I blogged about its new features and availability. Now after 3 years, last month-end (June’2013) the first Community Test Preview (CTP-1) of SQL Server 2014 is released, and with same great excitement here I’m with my similar blog post.

SQL Server 2014, this time mainly focuses on high performance in-Memory Operations for OLTP Databases by providing Memory Optimized Tables & Natively Compiled Stored Procedures. There is not much enhancement in T-SQL section, which was with SQL Server 2012. But with In-Memory features SQL Server 2014 has made a lot of impression and is definitely going to make a lot of impact.

Let’s see what all new features SQL Server 2014 is packed with:

.
>> Database Engine:

–> Memory-optimized tables: read more.

–> Natively Compiled Stored Procedures: read more.

-> AlwaysOn enhancements
– The maximum number of secondary replicas is increased from 4 to 8.
– When disconnected from the primary replica or during cluster quorum loss, readable secondary replicas now remain available for read workloads.
– Enhancements are made to increase the efficiency and ease of troubleshooting availability groups
– Failover cluster instances (FCIs) can now use Cluster Shared Volumes as cluster shared disks in Windows Server 2012 and above.
– The following three dynamic management views now return information for FCIs:
1. sys.dm_hadr_cluster (Transact-SQL)
2. sys.dm_hadr_cluster_members (Transact-SQL)
3. sys.dm_hadr_cluster_networks (Transact-SQL)

–> Managing the lock priority of online operations
Additional partition switching and index rebuild operations can now be performed while a table is online. The ONLINE = ON option now contains a WAIT_AT_LOW_PRIORITY option which permits you to specify how long the rebuild process should wait for the necessary locks.

–> Columnstore indexes
– Updateable Clustered Columnstore Indexes: can perform some insert, update, and delete operations, read more.
– SHOWPLAN displays information about columnstore indexes: The EstimatedExecutionMode and ActualExecutionMode properties have two possible values: Batch or Row. The Storage property has two possible values: RowStore and ColumnStore.
– Archival data compression: ALTER INDEX … REBUILD has a new COLUMNSTORE_ARCHIVE data compression option that further compresses the specified partitions of a columnstore index, read more.

–> Buffer pool extension
Provides the seamless integration of solid-state drives (SSD) as a nonvolatile random access memory (NvRAM) extension to the Database Engine buffer pool to significantly improve I/O throughput.

–> Query plans
Includes substantial improvements to the component that creates and optimized query plans.

–> Inline specification of CLUSTERED and NONCLUSTERED
Inline specification of CLUSTERED and NONCLUSTERED indexes is now allowed for disk-based tables.

–> SELECT … INTO
The SELECT … INTO statement is improved and can now operate in parallel.

–> Deployment Enhancements
Deploy a SQL Server Database to a Windows Azure Virtual Machine enables deployment of a SQL Server database to a Windows Azure VM, read more.

.
>> Analysis Services & BI

1. Updates to Design Tool installation

2. Features recently added: Power View for Multidimensional Models

read more.

.
>> No Changes to Integration Services, Reporting Services & Replication

.
You can know more about the CTP-1 version from my previous blog post. This post provides the Download Link, Install Prerequisites, Limitations, etc for the beta product.
