SET STATISTICS IO and TIME – What are Logical, Physical and Read-Ahead Reads?

February 20, 2013 2 comments

In my previous post [link] I talked about SET STATISTICS IO and Scan Count.

Here in this post I will go ahead and talk about Page Reads, i.e Logical Reads and Physical Reads.


–> Type of Reads and their meaning:

– Logical Reads: are the number of 8k Pages read from the Data Cache. These Pages are placed in Data Cache by Physical Reads or Read-Ahead Reads.

– Physical Reads: are the Number of 8k Pages read from the Disk if they are not in Data Cache. Once in Data Cache they (Pages) are read by Logical Reads and Physical Reads do not (or minimally) happen for same set of queries.

– Read-Ahead Reads: are the number of 8k Pages pre-read from the Disk and placed into the Data Cache. These are a kind of advance Physical Reads, as they bring the Pages in advance to the Data Cache where the need for Data/Index pages in anticipated by the query.


–> Let’s go by some T-SQL Code examples to make it more simple to understand:

USE [AdventureWorks2012]
GO

-- We will crate a new table here and populate records from AdventureWorks's Person.Person table:
SELECT BusinessEntityID, Title, FirstName, MiddleName, LastName, Suffix, EmailPromotion, ModifiedDate
INTO dbo.Person
FROM [Person].[Person]
GO

-- Let's Clear up the Data Cache or memory-buffer:
DBCC FREEPROCCACHE
DBCC DROPCLEANBUFFERS
GO

-- Run the following block of T-SQL statements:
SET STATISTICS IO ON
SET STATISTICS TIME ON
	SELECT * FROM dbo.Person

	SELECT * FROM dbo.Person
SET STATISTICS IO OFF
SET STATISTICS TIME OFF
GO
Output Message:

(19972 row(s) affected)
Table 'Person'. Scan count 1,
 logical reads 148, physical reads 0, read-ahead reads 148,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

 SQL Server Execution Times:
   CPU time = 31 ms,  elapsed time = 297 ms.

(19972 row(s) affected)
Table 'Person'. Scan count 1,
 logical reads 148, physical reads 0, read-ahead reads 0,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

 SQL Server Execution Times:
   CPU time = 16 ms,  elapsed time = 186ms.

The Output Message above shows different number of Reads for both the queries when ran twice.


On first execution of the Query, the Data Cache was empty so the query had to do a Physical Read. But as the optimizer already knows that all records needs to be fetched, so by the time query plan is created the DB Engine pre-fetches all records into memory by doing Read-Ahead Read operation. Thus, here we can see zero Physical Reads and 148 Read-Ahead Reads. After records comes into Data Cache, the DB Engine pulls the Records from Logical Reads operation, which is again 148.


On second execution of the Query, the Data Cache is already populated with the Data Pages so there is no need to do Physical Reads or Read-Ahead Reads. Thus, here we can see zero Physical & Read-Ahead Reads. As the records are already in Data Cache, the DB Engine pulls the Records from Logical Reads operation, which is same as before 148.


Note: You can also see the performance gain by Data Caching, as the CPU Time has gone down to 16ms from 31ms and Elapsed Time to 186ms from 297ms.


–> At our Database end we can check how many Pages are in the Disk for the Table [dbo].[Person].
Running below DBCC IND statement will pull number of records equal to number of Pages it Cached above, i.e. 148:

DBCC IND('AdventureWorks2012','Person',-1)
GO

The above statement pulls up 149 records, 1st record is the IAM Page and rest 148 are the Data Pages of the Table that were Cached into the buffer pool.


–> We can also check at the Data-Cache end how many 8k Pages are in the Data-Cache, before-Caching and after-Caching:

-- Let's Clear up the Data Cache again:
DBCC FREEPROCCACHE
DBCC DROPCLEANBUFFERS
GO

-- Run this DMV Query, this time it will run on Cold Cache, and will return information from the pre-Cache'd data:
;WITH s_obj as (
	SELECT
		OBJECT_NAME(OBJECT_ID) AS name, index_id ,allocation_unit_id, OBJECT_ID
	FROM sys.allocation_units AS au
	INNER JOIN sys.partitions AS p
	ON au.container_id = p.hobt_id
	AND (au.type = 1
		OR au.type = 3)
	UNION ALL
	SELECT OBJECT_NAME(OBJECT_ID) AS name, index_id, allocation_unit_id, OBJECT_ID
	FROM sys.allocation_units AS au
	INNER JOIN sys.partitions AS p
	ON au.container_id = p.partition_id
	AND au.type = 2
	),
obj as (
	SELECT
		s_obj.name, s_obj.index_id, s_obj.allocation_unit_id, s_obj.OBJECT_ID, i.name IndexName, i.type_desc IndexTypeDesc
	FROM s_obj
	INNER JOIN sys.indexes i
	ON i.index_id = s_obj.index_id
	AND i.OBJECT_ID = s_obj.OBJECT_ID
	)
SELECT
	COUNT(*) AS cached_pages_count, obj.name AS BaseTableName, IndexName, IndexTypeDesc
FROM sys.dm_os_buffer_descriptors AS bd
INNER JOIN obj
ON bd.allocation_unit_id = obj.allocation_unit_id
INNER JOIN sys.tables t
ON t.object_id = obj.OBJECT_ID
WHERE database_id = DB_ID()
AND obj.name = 'Person'
AND schema_name(t.schema_id) = 'dbo'
GROUP BY obj.name, index_id, IndexName, IndexTypeDesc
ORDER BY cached_pages_count DESC;

-- Run following Query, this will populate the Data Cache:
SELECT * FROM dbo.Person

-- Now run the previous DMV Query again, this time it will run on Cache'd Data and will return information of the Cache'd Pages:
Query Output:

-> First DMV Query Run:
cached_pages_count	BaseTableName	IndexName	IndexTypeDesc
2			Person		NULL		HEAP

-> Second  DMV Query Run:
cached_pages_count	BaseTableName	IndexName	IndexTypeDesc
150			Person		NULL		HEAP

So, by checking the above Output you can clearly see that only 2 Pages were there before-Caching.

And after executing the Query on table [dbo].[Person] the Data Pages got Cache’d into the buffer pool. And on running the same DMV query again you get the number of Cache’d Pages in the Data Cache, i.e same 148 Pages (150-2).


-- Final Cleanup
DROP TABLE dbo.Person
GO



>> Check & Subscribe my [YouTube videos] on SQL Server.



Advertisements

SET STATISTICS IO – What is Scan count?

February 16, 2013 2 comments

SET STATISTICS IO is a typical command which lets Database users to display information regarding the amount of disk activity generated by the Transact-SQL statements.

This command can be set to either ON or OFF.

Switching it to “ON”, it displays the stats of activity done by the SQL Server engine, like Scan Counts and number of Page Reads (Logical/Physical).

Let’s see here what does Scan Count exactly means in the information it provides:

As per MS BOL Scan Count is the:

Number of seeks/scans started after reaching the leaf level in any direction to retrieve all the values to construct the final dataset for the output.
– Scan count is 0 if the index used is a unique index or clustered index on a primary key and you are seeking for only one value. For example WHERE Primary_Key_Column = .
– Scant count is 1 when you are searching for one value using a non-unique clustered index which is defined on a non-primary key column. This is done to check for duplicate values for the key value that you are searching for. For example WHERE Clustered_Index_Key_Column = .
– Scan count is N when N is the number of different seek/scan started towards the left or right side at the leaf level after locating a key value using the index key.

Here we will see in what scenarios we will see different “Scan Counts”:

–> Execute below scripts as-is to see what they do:

USE [AdventureWorks2012]
GO

-- Insert some records into a new table from AdventureWorks's Person.Person table:
SELECT TOP 5000 BusinessEntityID, Title, FirstName, MiddleName, LastName, Suffix, EmailPromotion, ModifiedDate
INTO dbo.Person
FROM [Person].[Person]
GO

-- Let's Clear the Cache:
DBCC FREEPROCCACHE
DBCC DROPCLEANBUFFERS
GO

-- Executing 3 different T-SQL statements to see what stats-information they provide:
SET STATISTICS IO ON
	SELECT * FROM dbo.Person
	SELECT * FROM dbo.Person WHERE BusinessEntityID = 1
	SELECT * FROM dbo.Person WHERE BusinessEntityID IN (1,2)
SET STATISTICS IO OFF
GO
Output Message:
(5000 row(s) affected)
Table 'Person'. Scan count 1,
 logical reads 38, physical reads 0, read-ahead reads 38,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

(1 row(s) affected)
Table 'Person'. Scan count 1,
 logical reads 38, physical reads 0, read-ahead reads 0,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

(2 row(s) affected)
Table 'Person'. Scan count 1,
 logical reads 38, physical reads 0, read-ahead reads 0,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

In the above Output window we can see that Scan Count = 1 in all the three queries.
This is because the table does not have an index and it does a single full Table-Scan for every query above.

The Execution plan below shows that all 3 queries are doing full Table-Scan.
SET_STATS_IO_ON_SCAN_COUNT_01



–> Now let’s create a Unique Clustered Index on the table and see what “Scan Count” it gives on the same set of queries:

-- Create a Unique Clustered Index on the table:
CREATE UNIQUE CLUSTERED INDEX C_IX ON dbo.Person(BusinessEntityID)
GO

-- Let's Clear the Cache again:
DBCC FREEPROCCACHE
DBCC DROPCLEANBUFFERS
GO

-- Execute below statements and see what Output-Message it gives:
SET STATISTICS IO ON
	SELECT * FROM dbo.Person
	SELECT * FROM dbo.Person WHERE BusinessEntityID = 1
	SELECT * FROM dbo.Person WHERE BusinessEntityID IN (1,2)
SET STATISTICS IO OFF
Output Message:
(5000 row(s) affected)
Table 'Person'. Scan count 1,
 logical reads 44, physical reads 0, read-ahead reads 35,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

(1 row(s) affected)
Table 'Person'. Scan count 0,
 logical reads 2, physical reads 0, read-ahead reads 0,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

(2 row(s) affected)
Table 'Person'. Scan count 2,
 logical reads 4, physical reads 0, read-ahead reads 0,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

In the above Output window we can see a difference in Scan Count in all 3 queries.
1. First Query shows Scan Count = 1 as there is a Index but to return all rows it has to Scan the whole Index.
2. Second Query shows Scan Count = 0 as it uses the Index, but does a Index-Seek instead of Scan and Optimizer knows that there is only 1 value for BusinessEntityID = 1.
3. Third Query shows Scan Count = 2 as it also uses the Index, but it does a ORDERED FORWARD seek as it is looking for 2 different values, i.e. BusinessEntityID = 1 and 2.

Note: You will also see a reduction in number of Reads for the 2nd & 3rd queries, as it is utilizing the Index we created on the table, thus optimizing the performance.

Query plan for 3rd query:
|--Clustered Index Seek(OBJECT:([AdventureWorks2012].[dbo].[Person].[C_IX]),
 SEEK:([AdventureWorks2012].[dbo].[Person].[BusinessEntityID]=(1) OR
       [AdventureWorks2012].[dbo].[Person].[BusinessEntityID]=(2))
       ORDERED FORWARD)

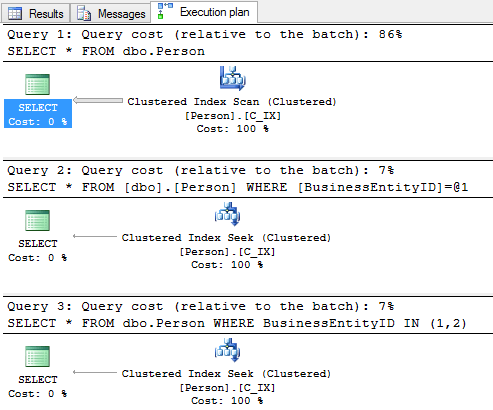

The Execution plan below shows very clearly how the above 3-queries are using Index:
SET_STATS_IO_ON_SCAN_COUNT_02


–> Let’s see what count it gives for T-SQL statement with 5 values:

SET STATISTICS IO ON
	SELECT * FROM dbo.Person WHERE BusinessEntityID IN (1,2,3,4,5)
SET STATISTICS IO OFF
(5 row(s) affected)
Table 'Person'. Scan count 5,
 logical reads 10, physical reads 0, read-ahead reads 0,
  lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

Here, we can see the Scan Count = 5 for the above query and reason is obvious. It is doing 5 ORDERED FORWARD Seeks to retrieve the 5 unique values.

-- Final Cleanup:
DROP TABLE dbo.Person

Check more on MSDN about SET STATISTICS IO : http://msdn.microsoft.com/en-us/library/ms184361.aspx
